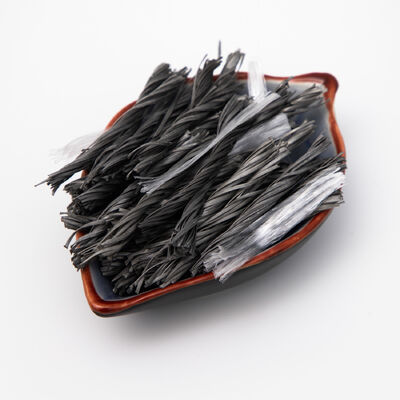

Durable PP Hybrid Fiber combining fibrillated mesh and twisted bunchy fibers for concrete reinforcement
Introtuction For Hybrid Type PP Fiber:
1. PP Fiber Twisted Bunchy is a 100% virgin blended copolymer synthetic structural macro-fiber successfully used as an alternative to steel fibers, welded wire mesh and conventional reinforcing bars in a wide variety of secondary reinforcement applications.
2. PP Fiber Hybrid type is actually a Hybrid of two fibers: A standard fibrillated mesh form Polypropylene Fiber to reduce and control shrinkage and temperature cracking. A twisted-bunchy form fiber made of strong synthetic copolymer, to increase the flexibility and breaking strength of concrete. It has high break strength, better dispersion and strong combining ability. It is widely used to instead of steel fibre to reinforce the cement concrete and crack-resistant.
100% Twisted Hybrid (98% Twisted + 2% Mesh by weight)
Applying Instruction For Hybrid Type PP Fiber:
1. Ration design of the fibre concrete: Generally the recommended amount to add to the concrete is more than 2.7kg per sqm(0.3% by volume), reinforcement adding amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.
2. Length: 48mm to 54mm for common crack-resistant requirement.
3. Mixer Adoption: Double-axle horizontal compelling mixer is priority.
4. Mixing process: Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes, fiber will fully spread and then add cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be properly prolonged to make fiber to be completely mixed .
5. Shaping & Maintenance: There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same as the normal concrete.
Specification For Hybrid Type PP Fiber:
| Index |
Twisted Bunchy |
Fibrillated Mesh |
| Raw Material |
PP/PE polymer |
PP |
| Appearance |
Twisted Bunchy |
Mesh form |
| Elastic Modulus |
≥5000Mpa |
| Length |
38/48/54mm ... |
| Diameter |
0.3mm (+/-0 .05) |
0.05mm (+/-0 .005) |
| Melt Point |
170℃ |
160℃ |
| Density |
0.91g/cm3 |
0.91g/cm3 |
| Break Strength |
550Mpa min. |
| acid&alkali resistance |
Excellent |
Application For Hybrid Type PP Fiber:
PP Fiber Hybrid Type can be used for Industrial and residential floors, Whitetoppings, bridge decks and pavements, Thin walled pre-cast (septic tanks, vaults, walls, etc.) and Mass concrete
Packing:
1.The regular packing is 1kg per PE bag, 10kg per plastic woven bag, 16tons in a 40HQ.
2. The other packing is 1kg each PE bag or water soluble paper bag, 11kgs each carton, 9900kgs/1X40`HQ with pallet.
